Build your harness on the blueprint.

OBD-1 D15B harnesses, built to order. Pick a preset, pick a loom color, then drag each branch handle to add exactly the slack your bay needs — the build sheet with your measurements lands on the bench. Nothing is charged here: final pricing and turnaround come back by email.

Flattened loom // set slack in step 4 (0–4″) · tap a callout to see the plug · expand to zoom

ECU — ECU BRANCHA / B / D PLUGS (P08-ERA)36"CJ — DRIVER LOOM JUNCTIONC103 / C2236"C — STARTER MOTORSPADE30"B — REVERSE SWITCH2-PIN — ON GEARBOX26"A — VEHICLE SPEED SENSOR3-PIN24"D — VTEC SOLENOID + PRESSURE1-PIN + 2-PIN10"E — WATER TEMP SENSOR2-PIN8"F — HEAD TEMP FOR DASH1-PIN SENDER8"G — DISTRIBUTOR8-PIN + 2-PIN POWER10"FS — THERMO FAN SWITCH2-PIN8"ALT — ALTERNATOR4-PIN ROUND24"J — ALT POWER LEADRING TERMINAL24"K — OIL PRESSURE1-PIN10"N — EXHAUST O2 SENSOR4-PIN HEATED18"U — MAP SENSOR3-PIN12"V — THROTTLE POSITION3-PIN6"O — IDLE AIR CONTROL2-PIN6"P — INTAKE AIR TEMP2-PIN10"Q — INJECTOR 12-PIN CLIP8"R — INJECTOR 22-PIN CLIP8"S — INJECTOR 32-PIN CLIP8"T — INJECTOR 42-PIN CLIP8"PJ — PASSENGER LOOM JUNCTIONCHASSIS JUNCTION6"

Branch lengths are seeded estimates — the bench measures twice before anything gets cut

1 // Preset

2 // Loom color

3 // Upgrades

New connector kit+$85Fresh OEM-style housings, terminals and seals on every plug — no 30-year-old brittle clips.
Upgraded injector clips+$40New locking injector plugs — the originals snap if you look at them wrong.
Extended O2 leads+$25Extra length on the oxygen sensor runs for aftermarket headers/downpipes.
Wideband O2 + ECU pigtailsComing soonShielded wideband run to the bung, plus double-branched ECU-end wires landed on A24 and D14 (or D10) — the pins your datalog reads. AEM-style controller link drops soon.See D14 on the P08 pinout card
New G101 ground+$30Fresh main engine ground at the thermostat housing — kills half the phantom electrical gremlins before they start.
Upgraded harness mounts+$45Billet-style P-clamps and bay hardware so the loom sits exactly where it’s supposed to, forever.
DIY Hippo zip ties+$10Hank’s own zip-tie kit — route it, cinch it, snip it. Budget mounting with mascot approval.

4 // Slack per branch

Extra length past stock — the loom numbers update live

ECUECU branchstock
CJDriver loom junctionstock
CStarter motorstock
BReverse switchstock
AVehicle speed sensorstock
DVTEC solenoid + pressurestock
EWater temp sensorstock
FHead temp for dashstock
GDistributorstock
FSThermo fan switchstock
ALTAlternatorstock
JAlt power leadstock
KOil pressurestock
NExhaust O2 sensorstock
UMAP sensorstock
VThrottle positionstock
OIdle air controlstock
PIntake air tempstock
QInjector 1stock
RInjector 2stock
SInjector 3stock
TInjector 4stock
PJPassenger loom junctionstock

Bench estimate

$650

Tucked · OEM Black · 0 upgrades · 0 slack adjustments

Request this build

Estimate only — final quote confirmed by email

THE FINISHED ARTICLE

This is where your build is headed.

Pick a loom color above and watch the bench shot change — braid, tracers, the works. Every harness ships with real build photos before it leaves the bench.

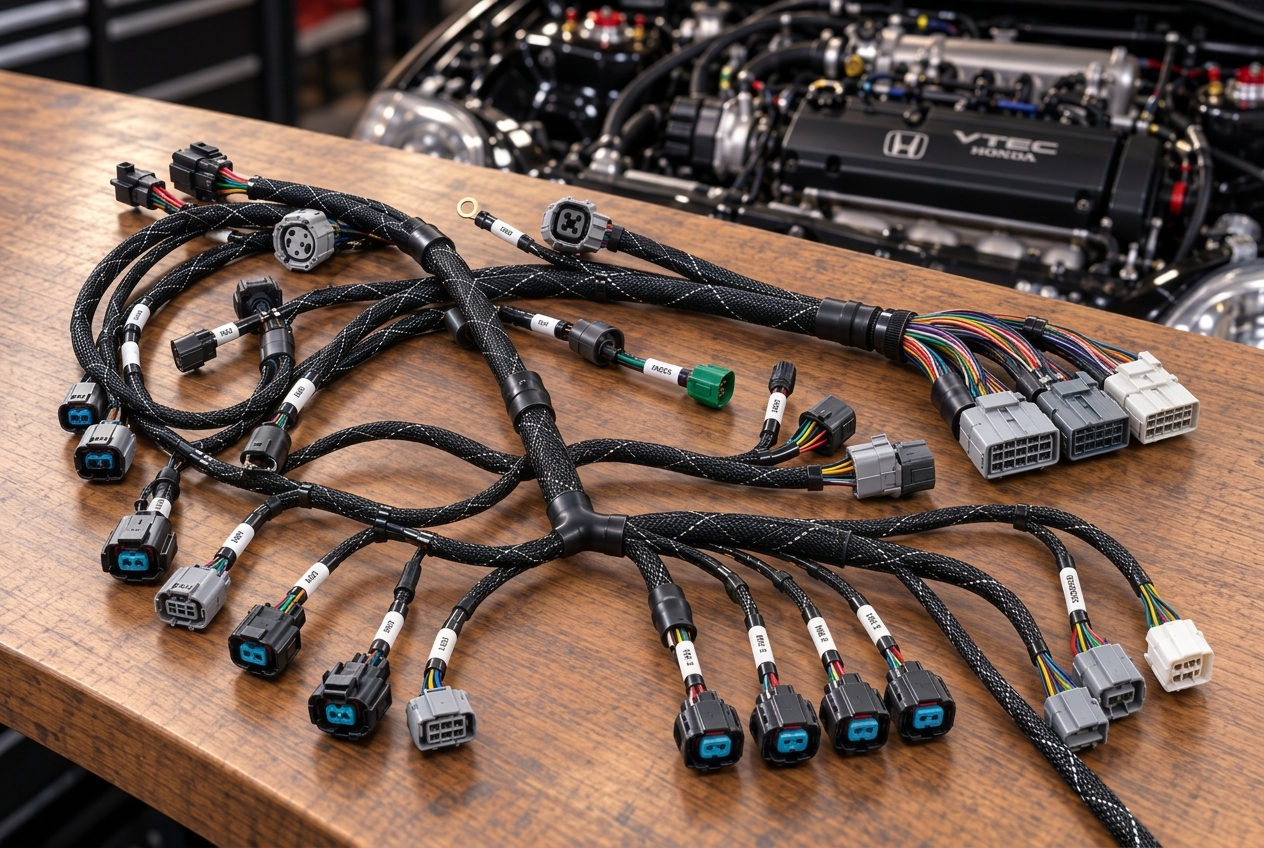

Finished tucked D15B harness in OEM Black
TuckedOEM Black$650 est.

THE BUILD SHEET

Your measurements, straight to the bench.

Cut list — Tucked

  • 36"
  • 6"
  • 30"
  • 26"
  • 24"
  • 10"
  • 8"
  • 8"
  • 10"
  • 8"
  • 24"
  • 24"
  • 10"
  • 18"
  • 12"
  • 6"
  • 6"
  • 10"
  • 8"
  • 8"
  • 8"
  • 8"
  • 6"

Request the quote

Sends the whole sheet — preset, loom, upgrades, every slack measurement. You get a bench-confirmed price and turnaround by email, then a Stripe invoice. Nothing is charged on this page.

BUDGET LANE // RESTORE & REPAIR

Already have a harness? Let’s bring it back.

Not every D15B needs a ground-up build. Ship us the loom that’s letting you down — chalky plugs, cooked sections, mystery gremlins — and the bench goes through it end to end: continuity-tested, re-pinned, fresh seals, new braid where it’s tired. You name the budget, we tell you exactly what it covers, and it comes back plug-and-play. Back on the road, safe.

Step 1

Name your budget

Tell us what you can spend and what's acting up. The bench works inside your number — no surprise invoices, ever.

Step 2

Ship your loom

Box it up and send it to the bench. On 93 Octane? Loom shipping is on us — that's the membership talking.

Step 3

Plug and play

Continuity-tested, re-pinned, sealed and braided where it counts. Bolt in, key on — back on the road, safe.

The rescue reel — drag the divider

BeforeAfter

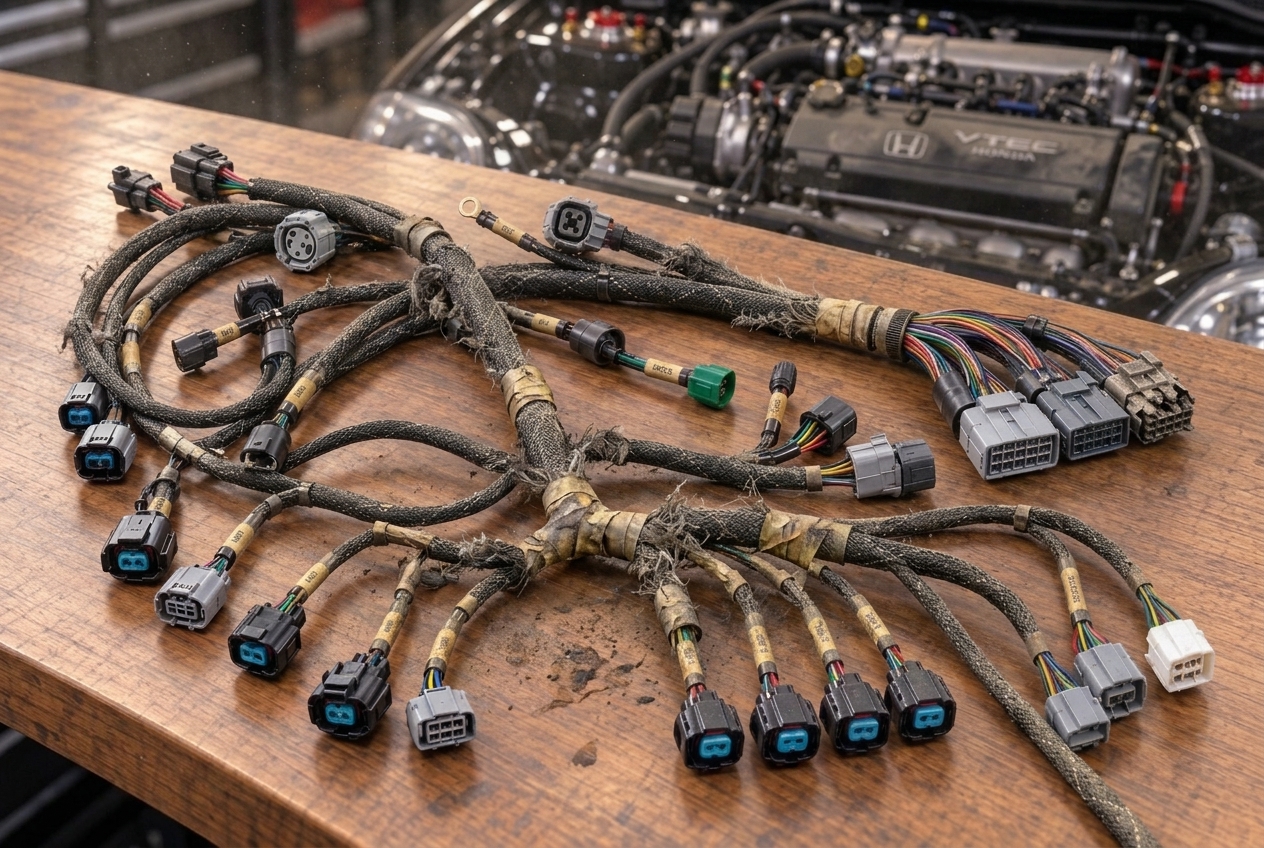

Heat-cooked bay loom → fresh OEM Black braid, new seals · illustrative — real restores posted as they ship
BeforeAfter

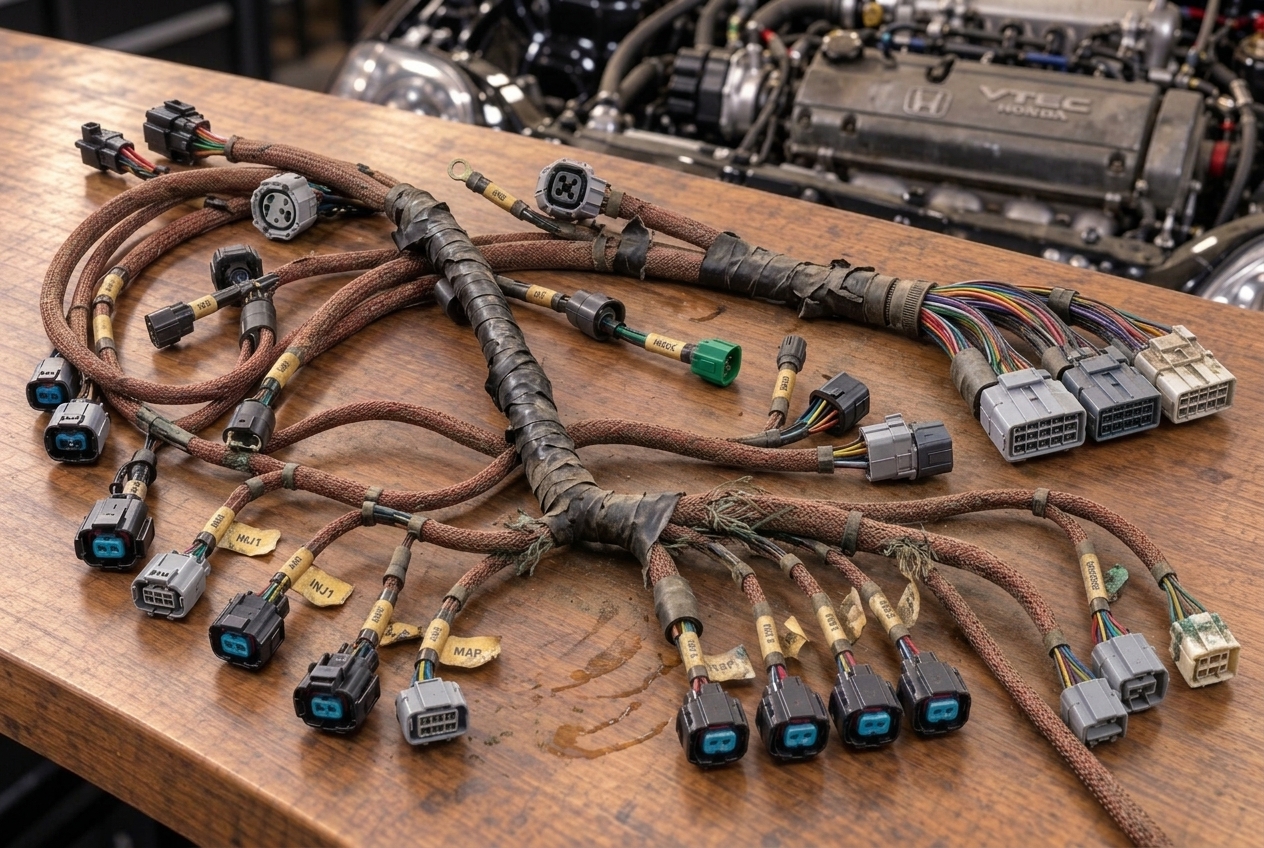

Taped-up mystery wiring → Mugen-ish Red, re-pinned end to end · illustrative — real restores posted as they ship
BeforeAfter

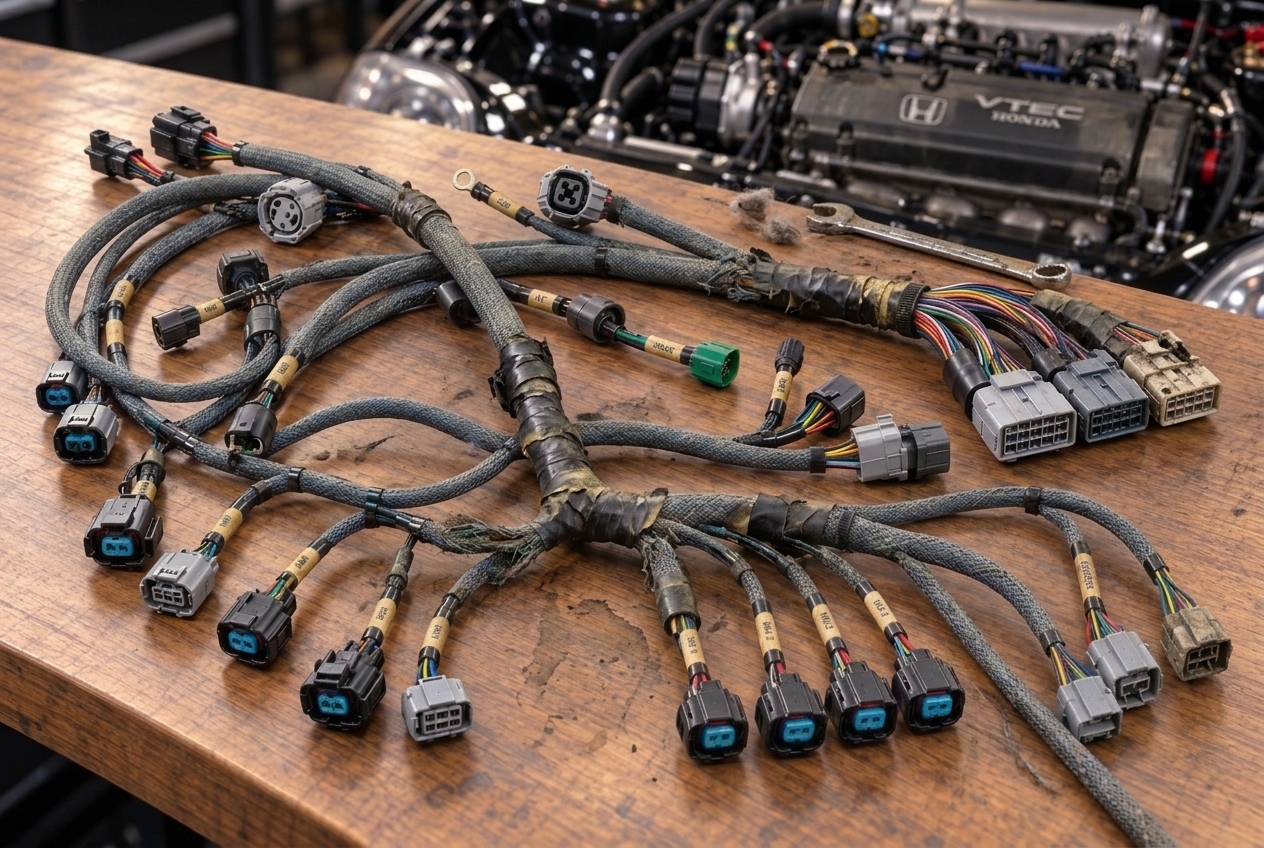

Frayed and brittle → Spoon Blue, continuity-tested · illustrative — real restores posted as they ship
